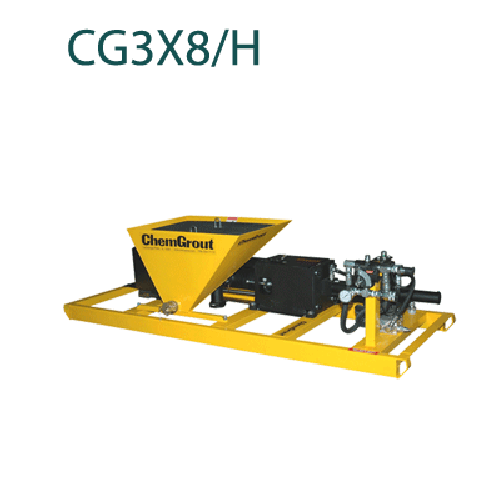

The ChemGrout High Pressure Pump series are skid mounted grout pumps. These low maintenance pumps are designed to work with your grouting batch plant or mixing system. The grout pump is a double acting, positive displacement, plunger style pump that is available in three different sizes, 3.5×8, 3×8 and 2×8, offering discharge pressures of 800 psi, 1,000 psi and 2,000 psi respectively. The plunger pump is designed so that conversion between the pressure outputs is quick, easy and cost effective. The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance. The pump is available with a 2″ ID ribbed suction hose or a 21 gallon holding hopper that is connected directly to the plunger pump. Operator controls are centrally located for efficient production.
Civil Engineering – soil nails, tiebacks, earth anchors, high pressure rock grouting
Structural – building restoration, foundation stabilization, foundation raising, soil compaction grouting
Construction – post tensioning, slab undersealing, slab jacking and slab raising
Marine – underwater foundations, piers, breakers, shoreline foundations
Mining – high pressure rock grouting, tunnel lining, contact grouting, waterproofing, cable and rock bolts
Utilities – encasements, waterproofing, dam foundations
Geotechnical – deep well casing, monitor wells, well sealing and abandonment
